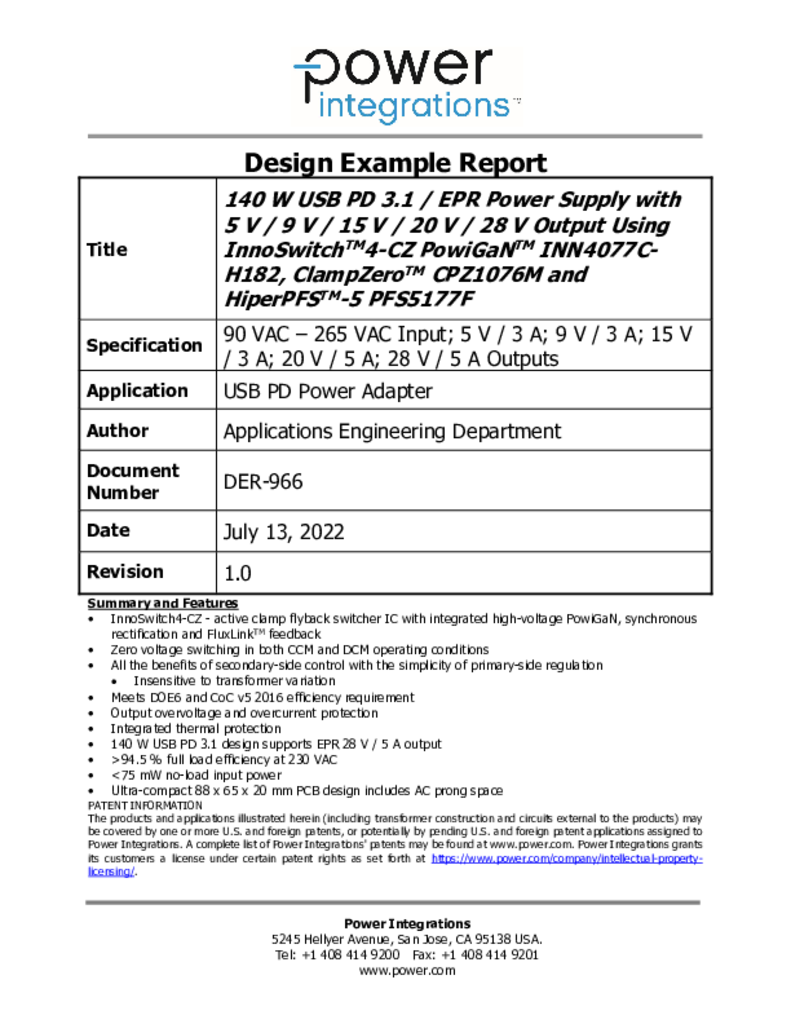

40 W USB PD 3.1 Extended Power Range Charger using PowiGaN-based InnoSwitch4-CZ, ClampZero and HiperPFS-5
140 W USB PD 3.1 Extended Power Range (EPR) charger for mobile devices and laptop computers using three innovative PowiGaN-based ICs:
InnoSwitch4-CZ active clamp flyback switcher IC (INN4077C-H182)
ClampZero active clamp IC (CPZ1076M)
HiperPFS-5 Power Factor Correction IC (PFS5177F)
– Input: 90 VAC – 265 VAC
– Variable Output: 5 V / 3A; 9 V / 3 A; 15 V / 3 A; 20 V / 5 A; 28 V / 5 A
– Efficiency: >94.5 % full load at 230 VAC
– No-load input: <75 mW
